Linux Infrastructure Hardening and SIEM Orchestration#

Compliance status: 83%
Starting baseline: 26%
Framework: CIS Arch Linux Benchmark
Environment: Arch Linux security lab with Wazuh-based monitoring

1. Executive Summary#

This project documents the hardening of a newly deployed Arch Linux system using CIS-aligned controls and centralized monitoring through Wazuh. The goal was not only to raise the benchmark score, but to build a host that was easier to audit, harder to misuse, and capable of producing actionable security telemetry.

Over the course of the engagement, I remediated more than 100 configuration issues spanning identity management, filesystem protections, kernel behavior, and network exposure. The final system reached 83% CIS compliance and produced materially stronger audit coverage through auditd, Wazuh SCA, and policy-driven service restrictions.

2. Technical Stack#

• Operating system: Arch Linux
• Monitoring platform: Wazuh 4.14.4 deployed in Docker
• Instrumentation: auditd, libpwquality
• Hardening controls: pam_pwquality, systemd, sysctl, visudo, ip6tables
• Automation environment: Fish shell for repeatable remediation steps

3. The Monitoring Dashboard#

Wazuh served as the operational center for the project. It provided a consolidated view of benchmark findings, agent health, vulnerability data, and MITRE ATT&CK-aligned detections, which made it easier to validate each remediation step against a measurable control outcome.

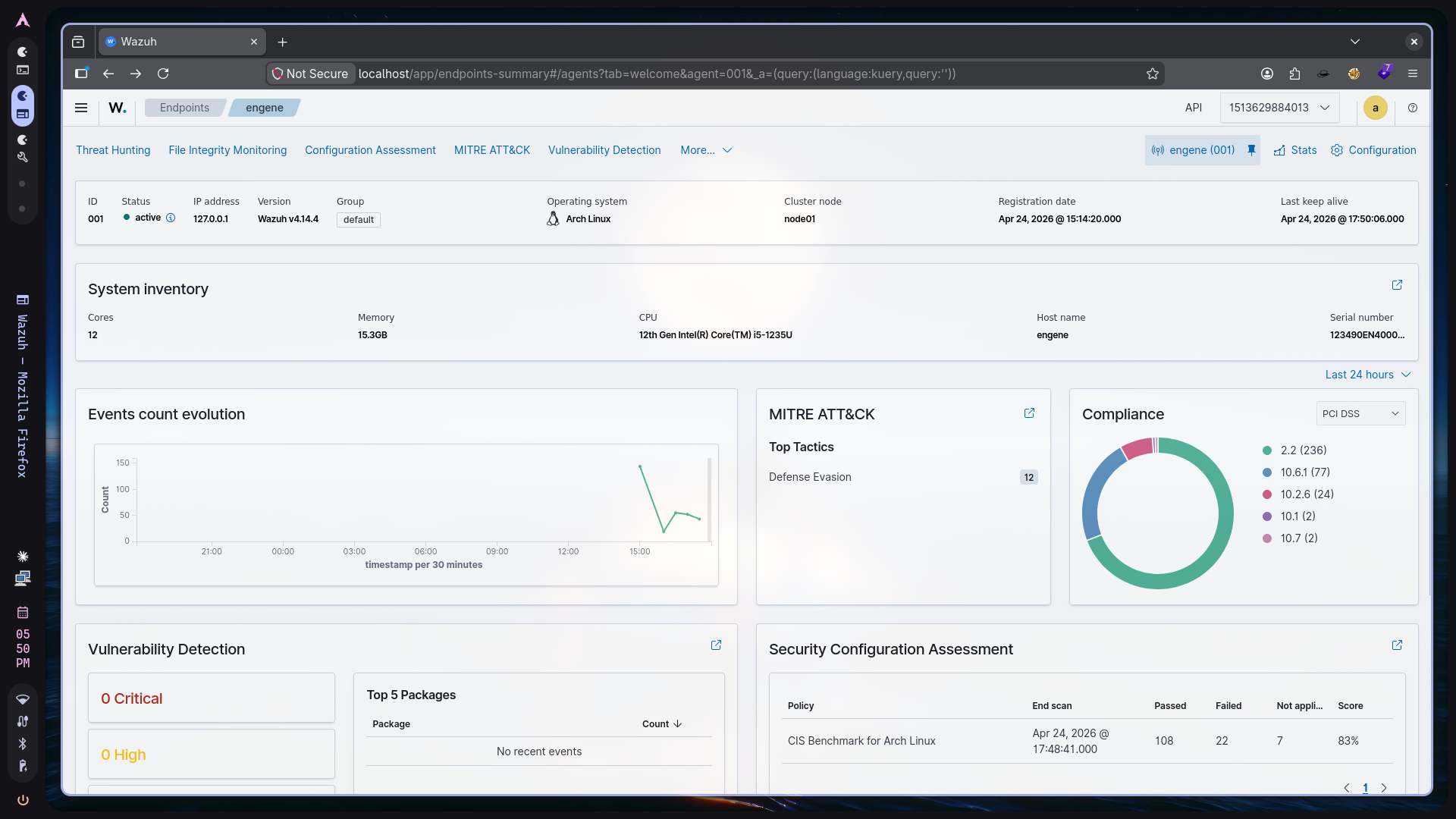

Figure 1. Wazuh dashboard showing the monitored Arch Linux endpoint and active security telemetry.

4. Implementation Phases#

Phase 1: Instrumentation & Baseline#

The first step was to deploy the Wazuh manager and enroll the Arch Linux host as an agent. Once the agent began reporting, the initial Security Configuration Assessment established a baseline score of 26%. Most failures were concentrated in authentication controls, service exposure, and auditability.

Figure 2. Initial CIS assessment showing low baseline compliance and multiple gaps in core host protections.

Phase 2: Remediation Sprints#

To keep the work structured, I grouped remediation into focused sprints based on control families rather than fixing findings one by one.

Sprint A: Identity and Access Management#

• Sudo hardening: Enabled use_pty and configured dedicated sudo logging to improve command accountability.
• Privilege restriction: Limited su access to the wheel group with pam_wheel.so.
• Password policy: Enforced password aging and complexity requirements through login.defs and related PAM controls.

Sprint B: Filesystem and Kernel Hardening#

• Mount restrictions: Applied noexec, nosuid, and nodev on /tmp, /var/tmp, and /dev/shm.
• Kernel module policy: Added modprobe rules to disable unnecessary or risky filesystem modules and to block unauthorized USB storage support.

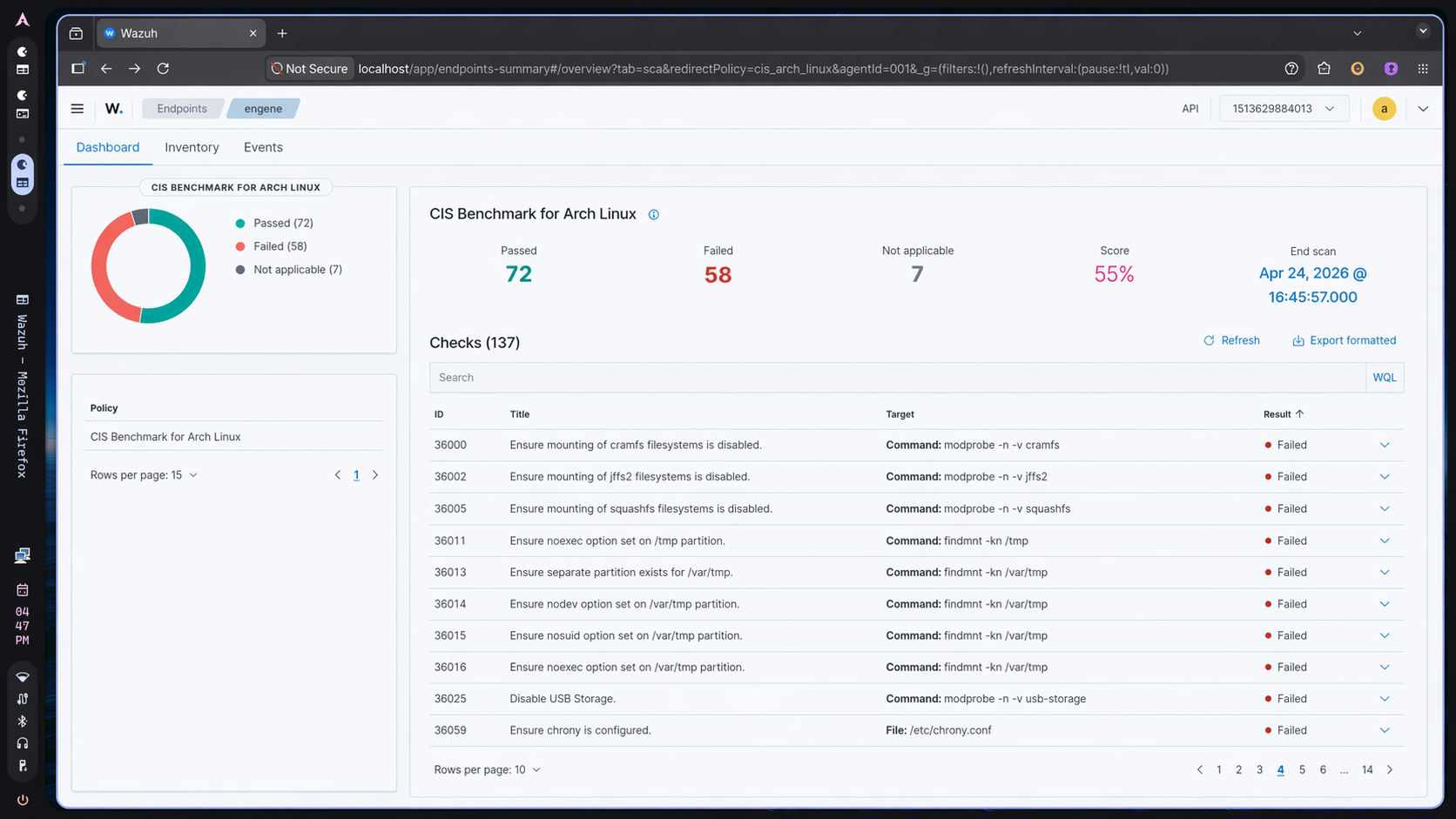

Figure 3. Mid-project assessment after initial filesystem, kernel, and service hardening raised compliance to 55%.

Sprint C: Network Surface Reduction#

• Service masking: Disabled and masked legacy services such as FTP, Telnet, SNMP, and HTTP where they were not required.
• Kernel network settings: Tightened sysctl parameters to disable forwarding and reject unsafe redirect behavior.

Phase 3: Deep Telemetry & Auditing#

The final phase focused on depth of visibility. To address the more demanding CIS audit requirements, I expanded host-level telemetry with auditd and loaded more than 22,000 rules derived from the Neo23x0 baseline. That rule set captured high-value system events such as:

• -k modules for unauthorized kernel module activity
• -k scope for changes to sudoers and related privilege boundaries
• -k file_creation for suspicious file creation attempts in restricted locations

5. Key Results#

• Compliance improvement: Increased the CIS score from 26% to 83%, a gain of 57 percentage points.
• Reduced attack surface: Removed or constrained common privilege escalation and lateral movement paths.
• Operational visibility: Established near real-time monitoring for host-level changes and audit events.

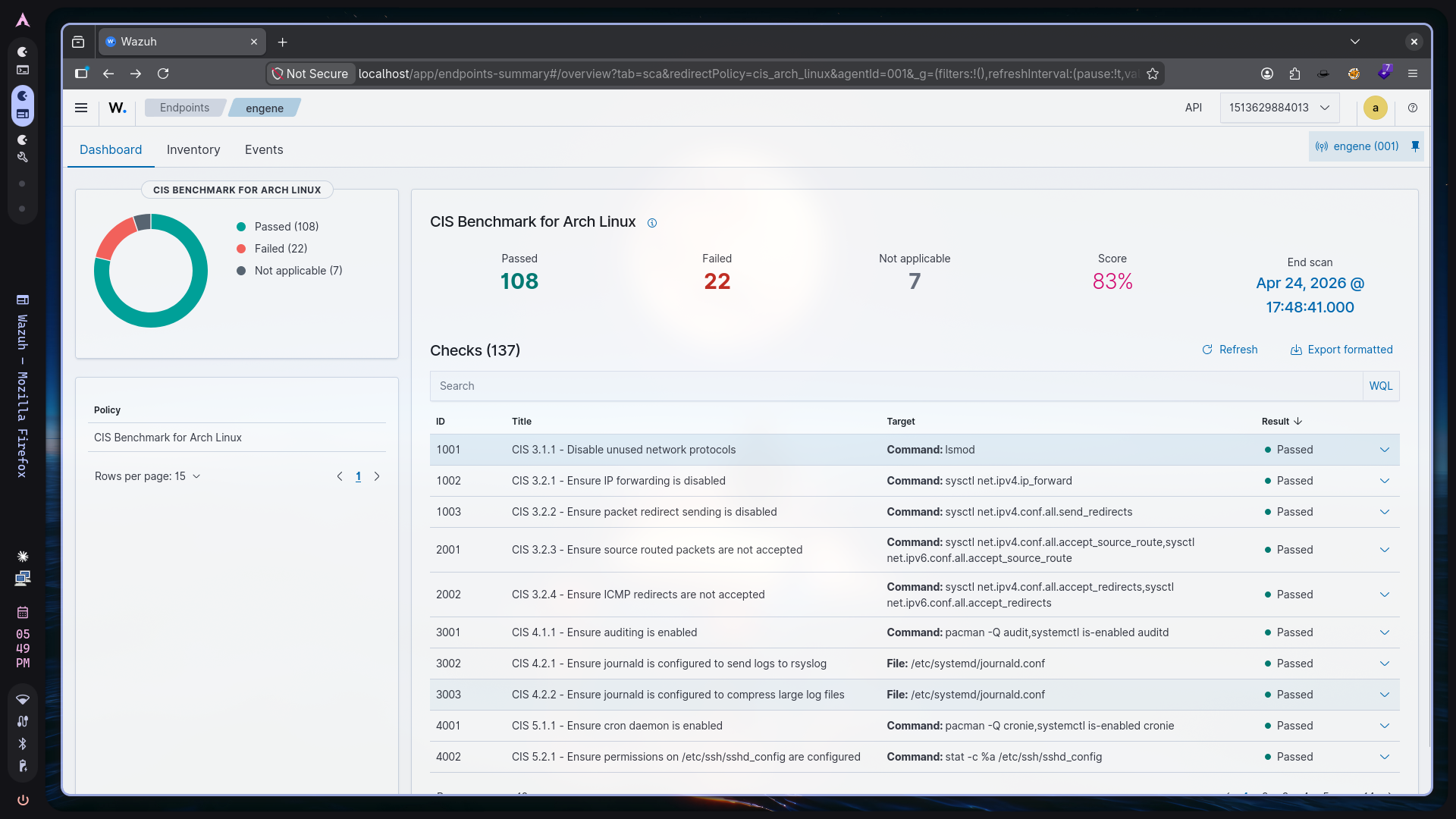

Figure 4. Final CIS assessment reflecting an 83% compliance score after remediation and audit expansion.

6. Lessons Learned#

• Minimal base systems still require strong control design: Arch Linux starts lean, but enterprise-grade hardening still depends on deliberate policy, logging, and service management.
• Benchmarking is most useful when paired with telemetry: Raising a score is helpful, but the more valuable outcome was the ability to observe and validate changes continuously through Wazuh and auditd.
• Automation matters: Using shell-based remediation reduced drift and made it easier to apply the same controls consistently during iterative testing.

7. Project Completion Checklist#

• Deploy Wazuh SIEM
• Agent Instrumentation
• Kernel Hardening
• Telemetry Enrichment
• CIS Benchmark Compliance (80%+)
